Project41.MP1854EN

Description

This is a tiny, powerful step-down (Buck) switching voltage converter with a wide operating range. This device is about the size of a US Quarter. The output is set with a potentiometer.

Specification

• IC Chip: Monolithic Power Systems (MPS) MP1584EN

• Input Voltage: 4.5V to 28V

• Output Voltage:0.8V to 20V

• Output Current: 1.8 A typical (3.0 Max)

• Conversion Efficiency: Up to 96%

• Output Ripple: <30mV

• Switching Frequency: Up to 1.5MHz, typical 1MHz

• Operating Temperature: -45°C to +85°C

• Size Dimensions: 22mm * 17mm * 4mm (Length * Width * Height)

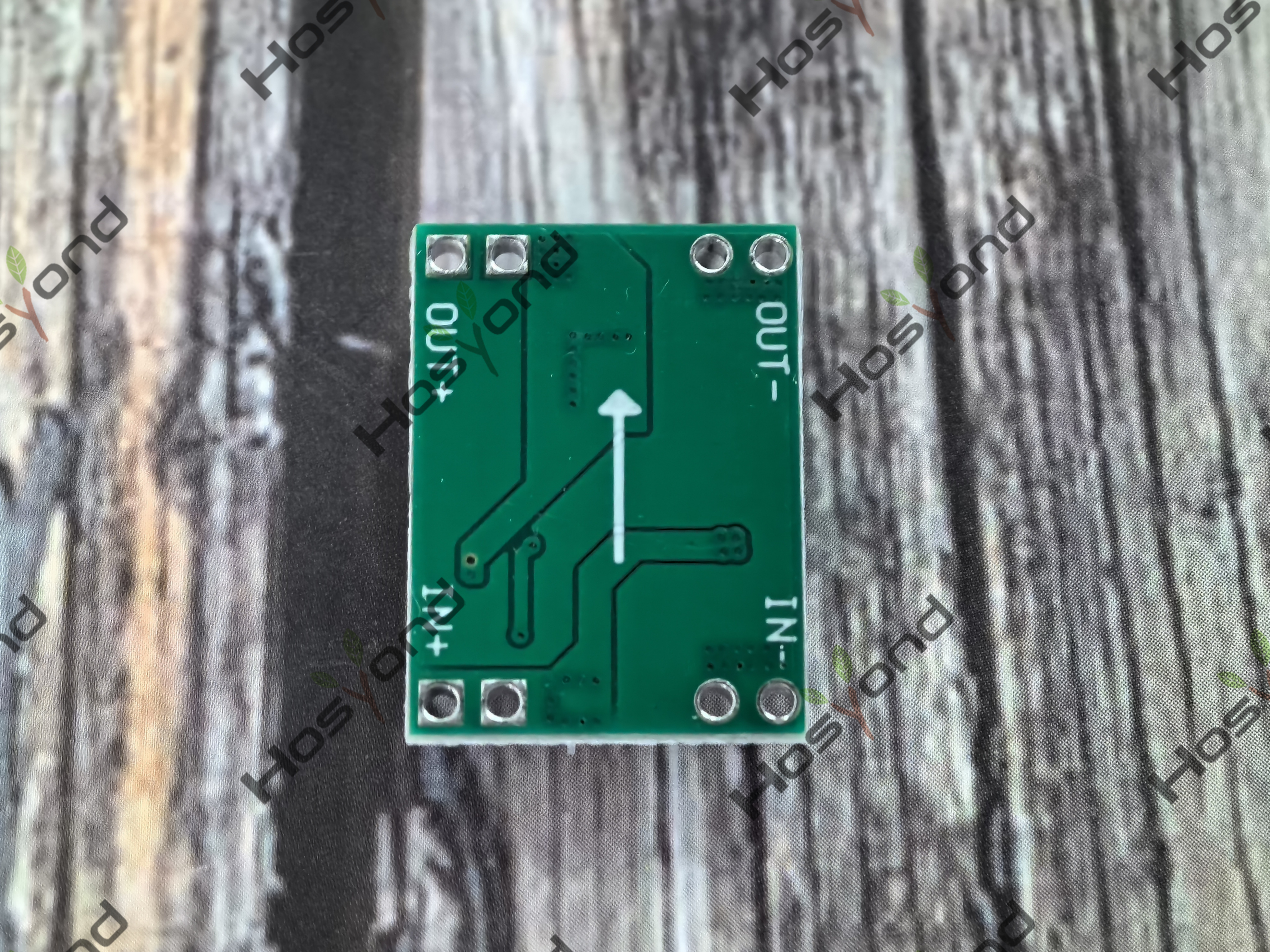

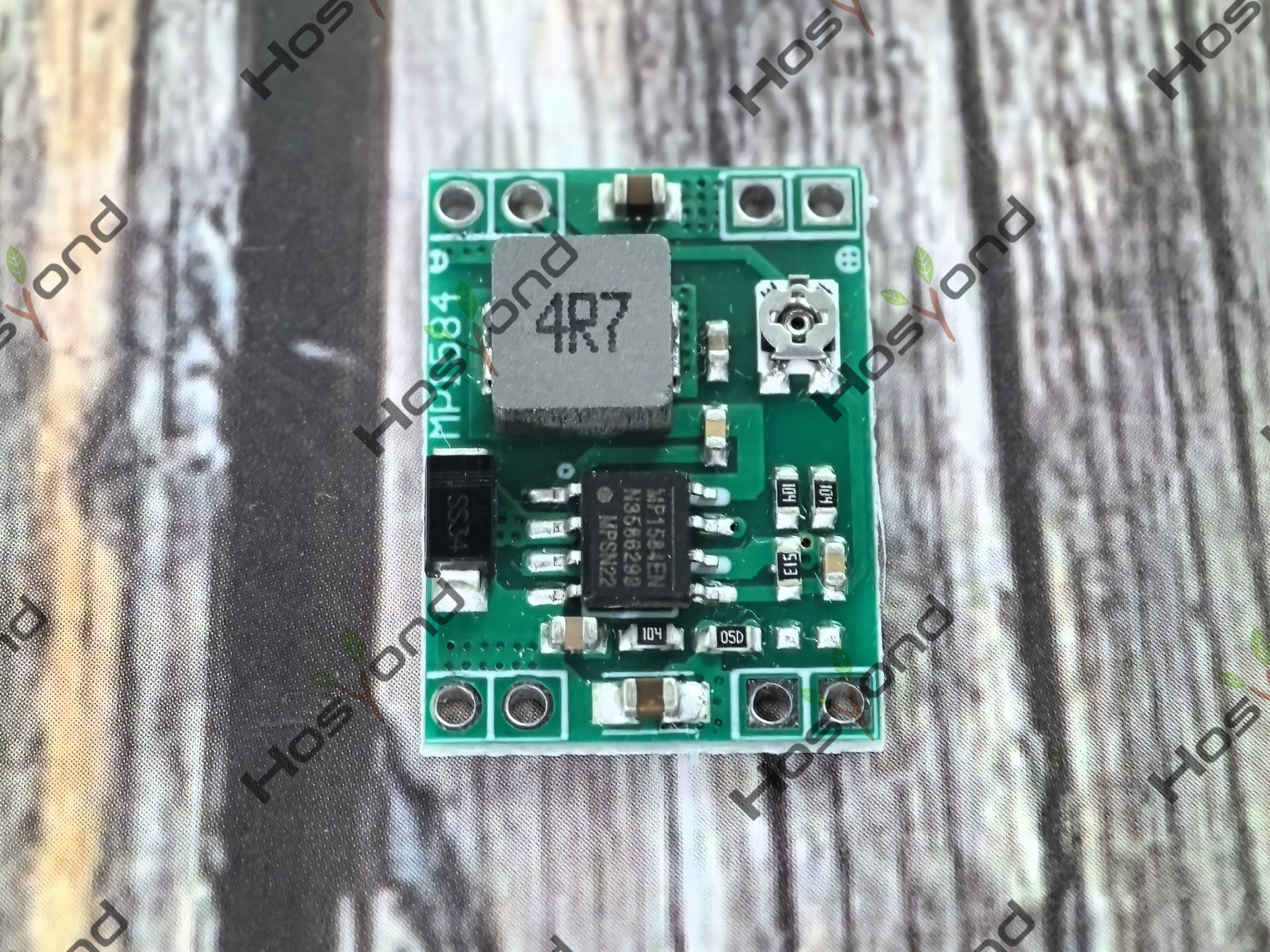

Product Image
