Project15.DS18B20_sensor

Description

The DS18B20 temperature sensor is a one-wire digital temperature sensor. This means that it just requires one data line (and GND) to communicate with the Arduino.

It can be powered by an external power supply or it can derive power from the data line (called “parasite mode”), which eliminates the need for an external power supply.

Specification

  • -55°C to +85°C temperature measurement range with good accurac

  • 1-wire interface to save on MCU pins

  • LED to indicate module communications

  • 3.3 and 5V compatible

Connect

_images/15_bb.png

Code

#include <OneWire.h>

int DS18S20_Pin = 2; //DS18S20 Signal pin on digital 2

//Temperature chip i/o
OneWire ds(DS18S20_Pin); // on digital pin 2

void setup(void) {
Serial.begin(9600);
}

void loop(void) {
float temperature = getTemp();
Serial.println(temperature);

delay(100); //just here to slow down the output so it is easier to read

}


float getTemp(){
//returns the temperature from one DS18S20 in DEG Celsius

byte data[12];
byte addr[8];

if ( !ds.search(addr)) {
//no more sensors on chain, reset search
ds.reset_search();
return -1000;
}

if ( OneWire::crc8( addr, 7) != addr[7]) {
Serial.println("CRC is not valid!");
return -1000;
}

if ( addr[0] != 0x10 && addr[0] != 0x28) {
Serial.print("Device is not recognized");
return -1000;
}

ds.reset();
ds.select(addr);
ds.write(0x44,1); // start conversion, with parasite power on at the end

byte present = ds.reset();
ds.select(addr);
ds.write(0xBE); // Read Scratchpad


for (int i = 0; i < 9; i++) { // we need 9 bytes
data[i] = ds.read();
}

ds.reset_search();

byte MSB = data[1];
byte LSB = data[0];

float tempRead = ((MSB << 8) | LSB); //using two's compliment
float TemperatureSum = tempRead / 16;

return TemperatureSum;

}

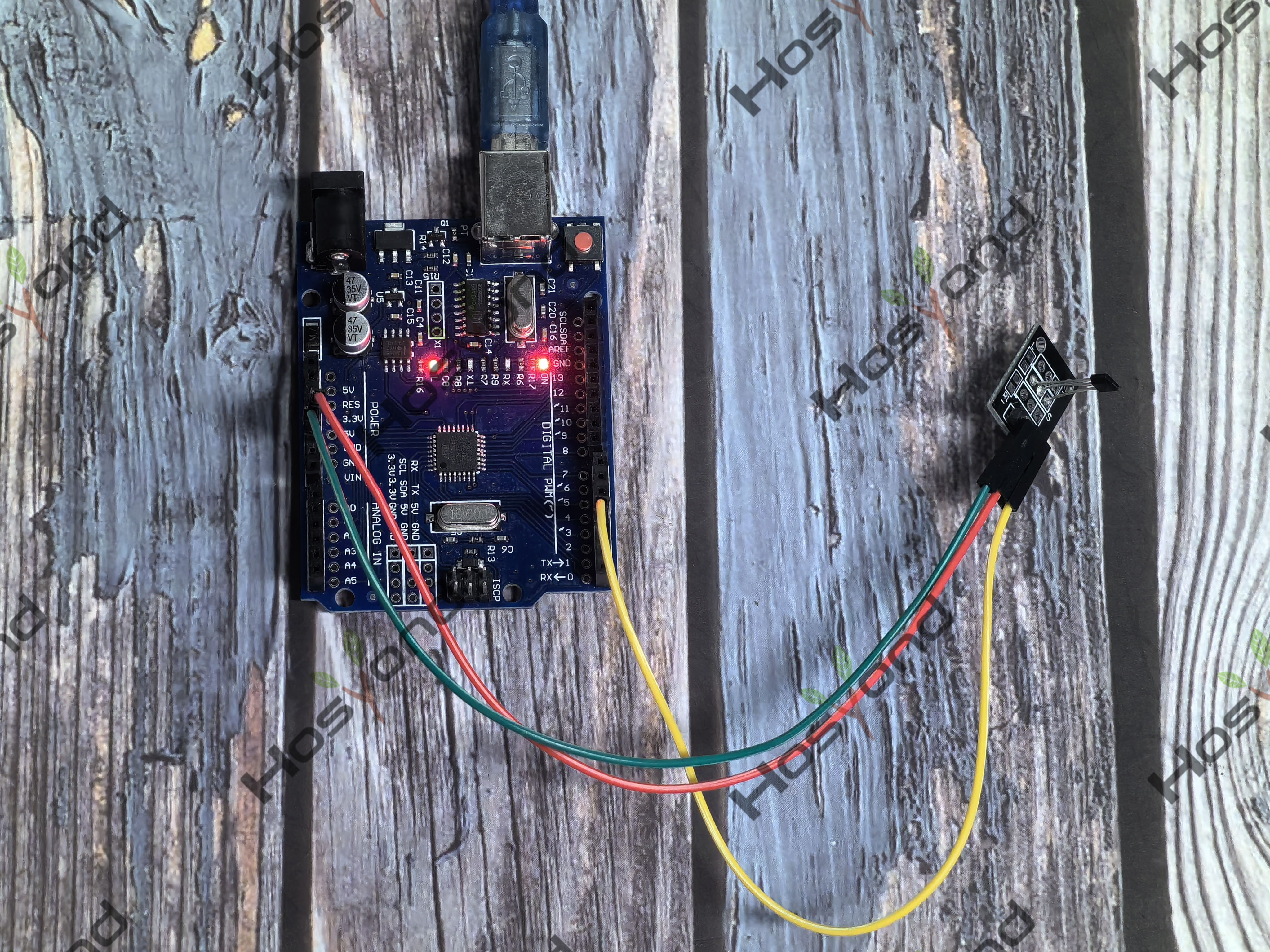

Phenomenon

_images/15.jpg
