Project21.Tilt switch

Description

Tilt Sensor is a digital tilt switch. It can be used as a simple tilt switch. Simply plug it to our IO/Sensor shield, easy for wire connection. With dedicated sensor shield and Arduino, you can make lots of interesting and interactive works.

Specification

Supply Voltage: 3.3V to 5V
Interface: Digital
Size: 30*20mm
Weight: 3g

Connect

_images/21_bb.png

Code

int ledPin = 13;                // Connect LED to pin 13
int switcher = 3;                 // Connect Tilt sensor to Pin3

void setup()
{
pinMode(ledPin, OUTPUT);      // Set digital pin 13 to output mode
pinMode(switcher, INPUT);       // Set digital pin 3 to input mode
}
void loop()
{

if(digitalRead(switcher)==LOW) //Read sensor value
    {
        digitalWrite(ledPin, HIGH);   // Turn on LED when the sensor is tilted
    }
else
    {
        digitalWrite(ledPin, LOW);    // Turn off LED when the sensor is not triggered
    }
}

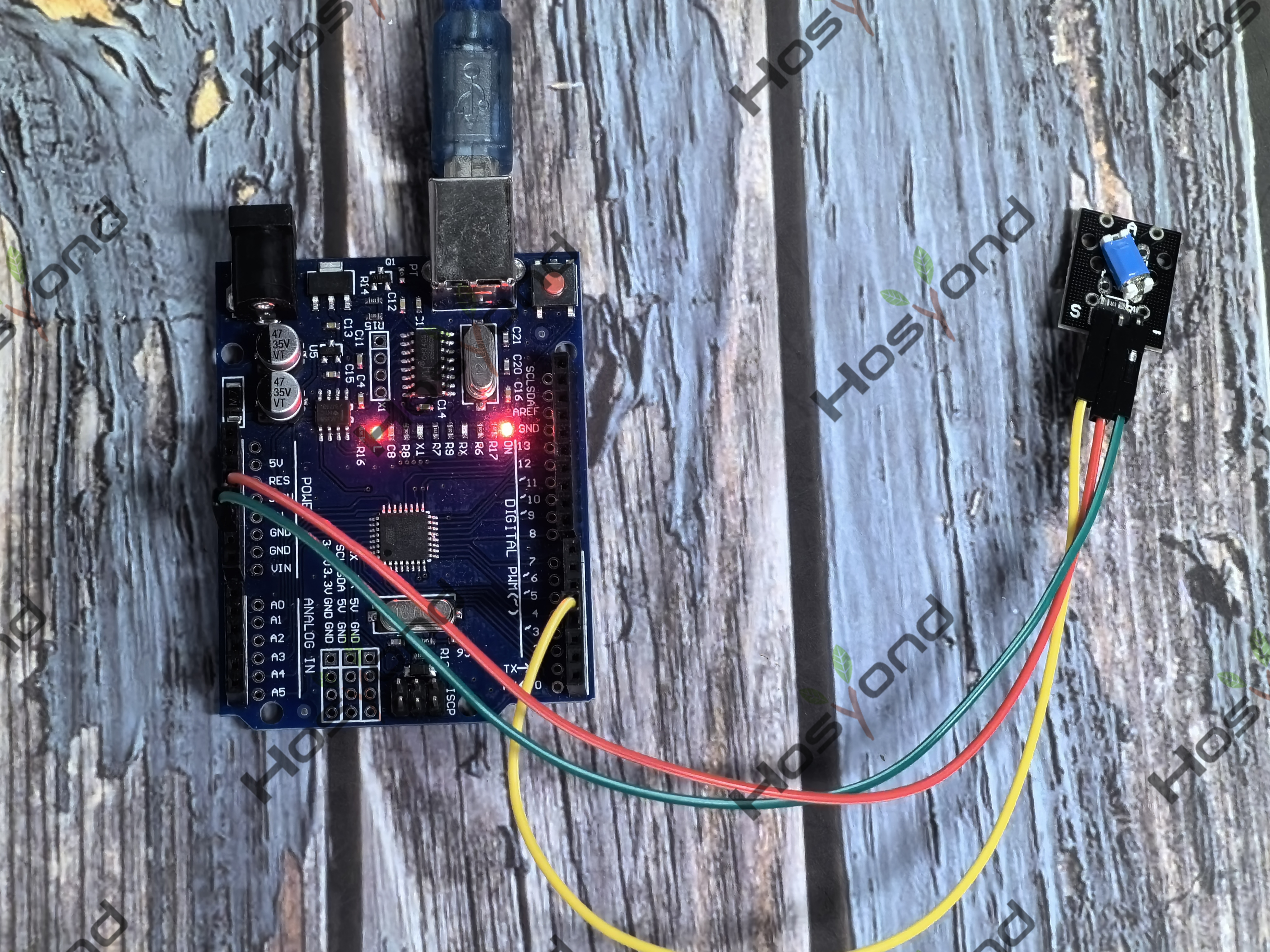

Phenomenon
