Project34.Flame Sensor Module

Description

The KY-026 Flame Sensor module detects infrared light emitted by fire. This module has both digital and analog outputs and a potentiometer to adjust the sensitivity. Commonly used in fire detection systems.

Compatible with Arduino, Raspberry Pi, ESP32 and other microcontrollers.

Specification

• Operating Voltage 3.3V ~ 5.5V

• Infrared Wavelength Detection 760nm ~ 1100nm

• Sensor Detection Angle 60°

• Board Dimensions 1.5cm x 3.6cm

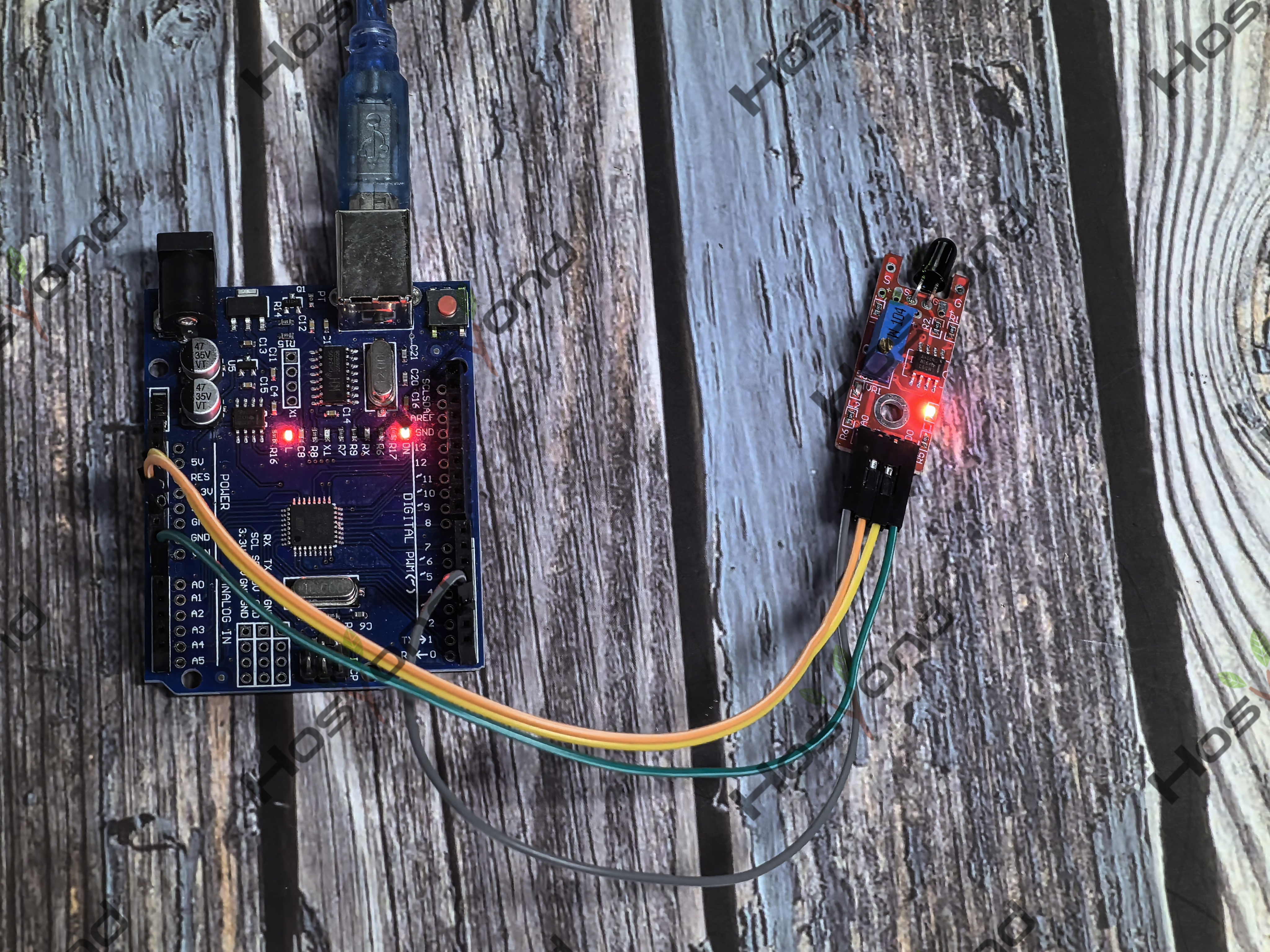

Connect

Code

int led = 13; // define the LED pin
int digitalPin = 2; // KY-026 digital interface
int analogPin = A0; // KY-026 analog interface
int digitalVal; // digital readings
int analogVal; //analog readings

void setup()
{
pinMode(led, OUTPUT);
pinMode(digitalPin, INPUT);
//pinMode(analogPin, OUTPUT);
Serial.begin(9600);
}

void loop()
{
// Read the digital interface
digitalVal = digitalRead(digitalPin);
if(digitalVal == HIGH) // if flame is detected
{
    digitalWrite(led, HIGH); // turn ON Arduino's LED
}
else
{
    digitalWrite(led, LOW); // turn OFF Arduino's LED
}

// Read the analog interface
analogVal = analogRead(analogPin);
Serial.println(analogVal); // print analog value to serial

delay(100);
}

Phenomenon
