Project39.Water Level Sensor

Description

The sensor has ten exposed copper traces, five of which are power traces and the remaining five are sense traces. These traces are interlaced so that there is one sense trace between every two power traces.

Normally, power and sense traces are not connected, but when immersed in water, they are bridged.

There is a Power LED on the board, which will light up when the board is powered.

The power and sense traces form a variable resistor (much like a potentiometer) whose resistance varies based on how much they are exposed to water.

Specification

  • Working voltage: DC3-5V

  • Sensor type: simulation

  • Work current: less than 20mA

  • Detective area: 40mmx16mm

  • Work temperature: 10 ℃ -30 ℃

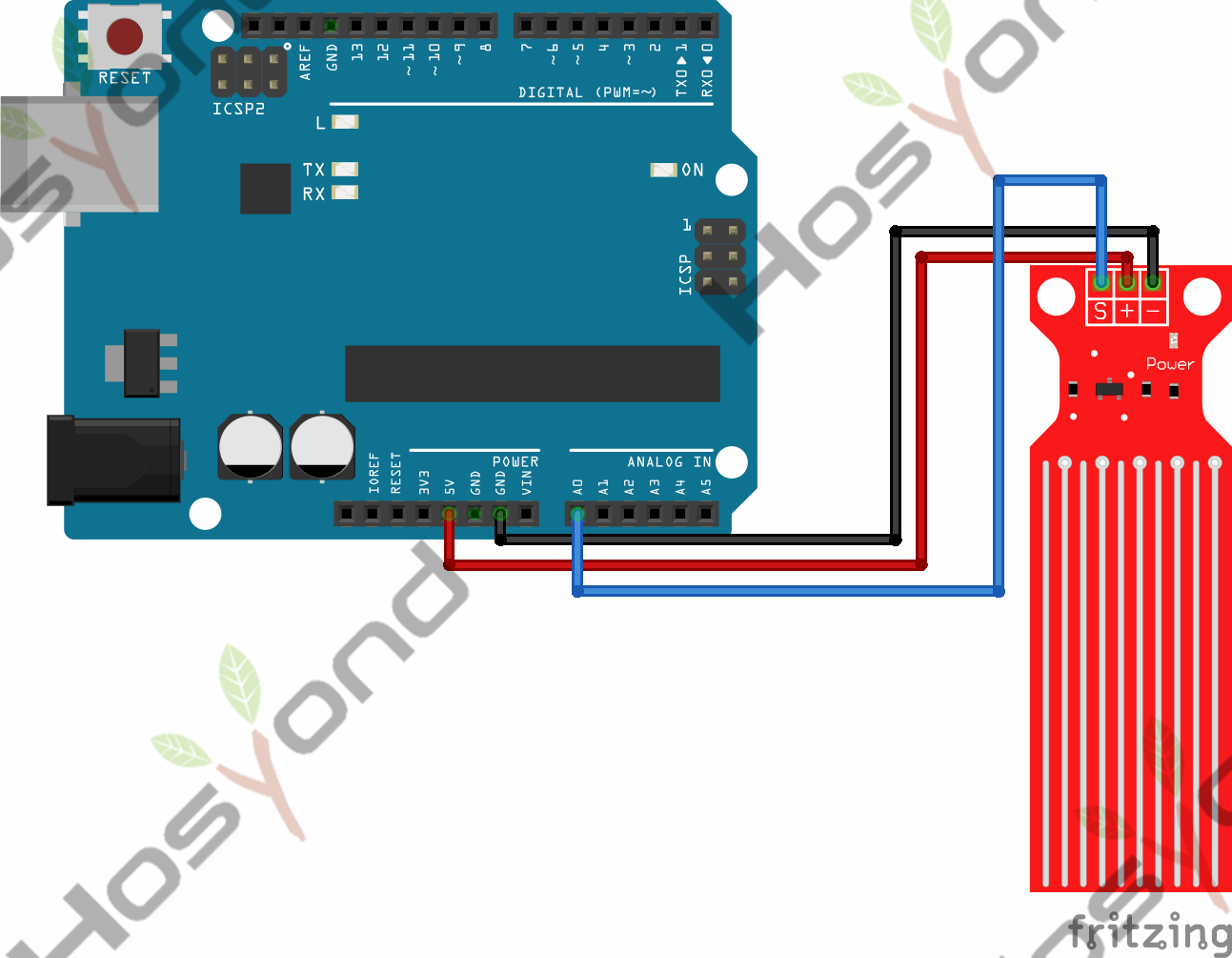

Connect

_images/39_bb.png

Code

// Sensor pins
// #define sensorPower 7
#define sensorPin A0

// Value for storing water level
int val = 0;

void setup() {
    // Set D7 as an OUTPUT
    // pinMode(sensorPower, OUTPUT);

    // Set to LOW so no power flows through the sensor
    // digitalWrite(sensorPower, LOW);

    Serial.begin(9600);
}

void loop() {
    //get the reading from the function below and print it
    int level = readSensor();

    Serial.print("Water level: ");
    Serial.println(level);

    delay(1000);
}

//This is a function used to get the reading
int readSensor() {
    // digitalWrite(sensorPower, HIGH);     // Turn the sensor ON
    delay(10);                                                      // wait 10 milliseconds
    val = analogRead(sensorPin);            // Read the analog value form sensor
    // digitalWrite(sensorPower, LOW);              // Turn the sensor OFF
    return val;                                                     // send current reading
}

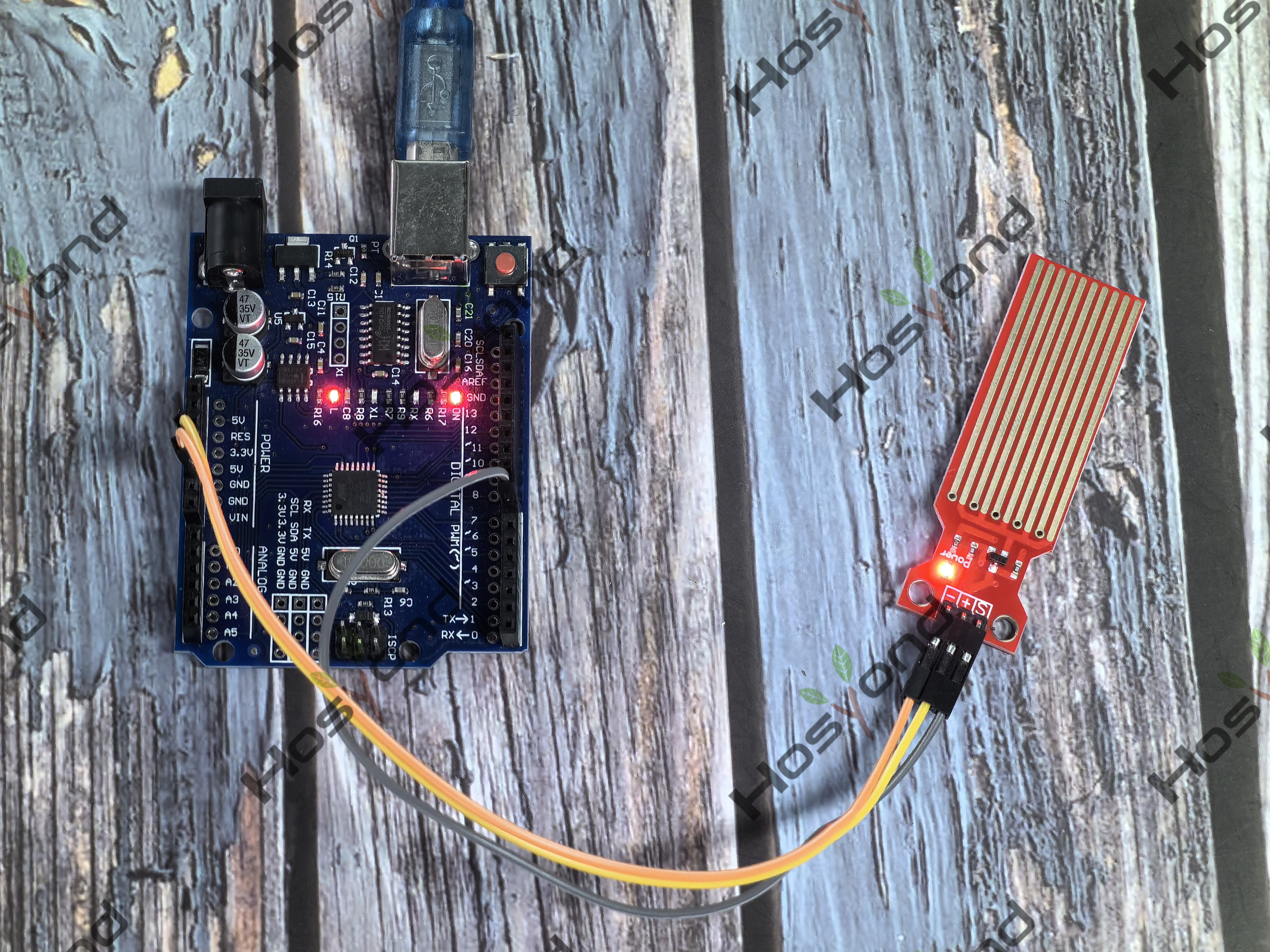

Phenomenon

_images/39.jpg
